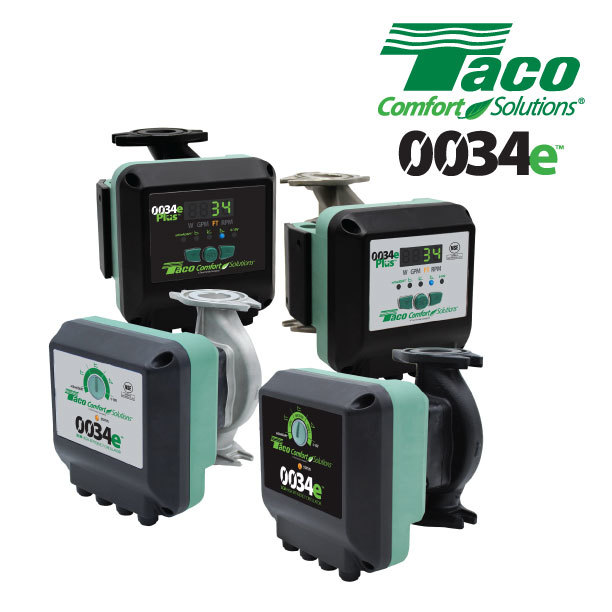

Taco 0034e™ ECM High-EfficiencyCirculator Pumps
The 0034e™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM
permanent magnet technology. With 5 easy settings, its variable speed performance curves are
equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. Ideal for
large residential and light commercial hydronic heating, chilled water cooling and domestic hot
water systems. The 0034e reduces power consumption by up to 85% compared to equivalent
AC permanent split capacitor circulators. With a maximum of 34 feet of head and 50 gpm, it is
available in either Cast Iron or NSF certified Stainless Steel.
Features of 0034e:
Features of 0034e:
- 5 easy dial settings to match system requirements - activeADAPT™, LOW, MEDIUM, HIGH or 0-10V DC analog or PWM digital signal external input
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Replaces all single speed and 3-speed circulators in its class
- Multi-color LED: power on, mode setting and error code diagnostics
- Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
- Nut-grabber feature on flanges for easier fit up
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Double insulated
- Whisper quiet operation
- Rotatable control cover to simplify installation
- Simple 3-button control
- Digital LED screen displays; Watts, GPM, Head, RPM and diagnostic error codes
- Five operating modes to match any system requirements — activeADAPT™, Constant Pressure, Proportional Pressure, Min/Max Fixed Speed or speed control through 0-10V DC or PWM external input
0034e Documents:
Taco 0034e Brochure.pdf | Taco 0034e Instruction Sheet.pdf | Taco 0034e Submittal Data.pdf
0034e Plus Documents:
Taco 0034e Plus Brochure.pdf | Taco 0034e Plus Instruction Sheet.pdf | Taco 0034e Plus Submittal Data.pdf
