RHT Wood-Fired Boiler Pump Panels

Simple installation, trouble-free design

RHT boiler panels are professionally manufactured and pre-assembled. RHT boiler panels are an excellent value & time-saver, simplifying your heating system installation.

Features:

  • 1" copper connections
  • Energy-efficient Grundfos Alpha Pumps
  • Mixing valve
  • Single zone panel includes Taco Switching Relay, multi-zone panels include Tekmar Switching Relay
  • Professionally plumbed and pressure tested
  • Mounted to an aluminum panel with unistrut and cushion clamps. Panel size varies depending upon number of pumps, with the smallest being 2'x2' and largest being 3'x3'


FREE shipping to all US addresses in the Lower 48.
Additional fees apply to shipments to AK, HI, and outside the US.

Documentation: RHTWoodBoilerPrefab.pdf

↓   RHT Prefabricated Wood-Fired Boiler Pump Panel  ↓

1 Zone Prefabricated Wood-Fired Boiler Pump Panel with 3-way mixing valve for low temp operation

Part No: WFB-1

$2133.44 each

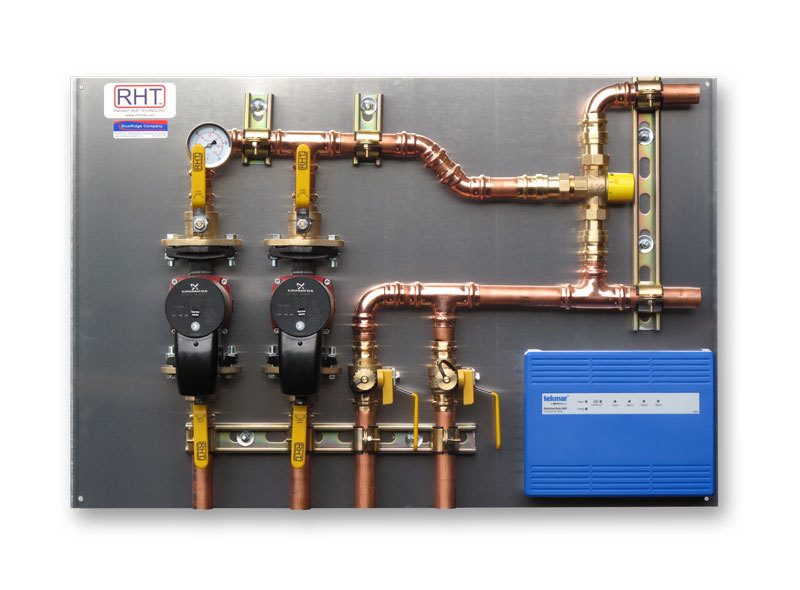

2 Zone Prefabricated Wood-Fired Boiler Pump Panel
Built as 2 low temperature zones drawing from one low temp 3-way mixing valve

Part No: WFB-2

$2988.94 each

3 Zone Prefabricated Wood-Fired Boiler Pump Panel
Built as 3 low temperature zones drawing from one low temp 3-way mixing valve

Part No: WFB-3

$3433.03 each

4 Zone Prefabricated Wood-Fired Boiler Pump Panel
Built as 4 low temperature zones with two 3-way mixing valves, each valve serving two pumps

Part No: WFB-4

$4499.73 each

Add 104-176F mixing valve and thermometer to panel. includes additional fittings required.

Part No: Hi-3Way Upgrade

$163.93 each

Custom multi-temp configuration - choice of:

  • 2 Zones with 1 high temp, 1 low temp
  • 3 Zones with 1 high temp, 2 low temp
  • 3 Zones with 2 high temp, 1 low temp

    • Part No: CustomUP

    $196.62 each

    Add additional Add Webstone 78104W mixing valve and thermometer to panel

    Part No: 3 way Mix

    $215.73 each

    Optional Tekmar 3-Way Mixing Valve (recommended for larger systems)

    Part No: Tekmar 3-Way

    $198.52 each
    ↓   Circulator Pump Upgrade Options   ↓

    Upgrade from Grundfos UPSe Cast Iron Circulator to Taco 0018e SF4 Stainless Steel ECM Circulator
    (upgrade charge per pump)

    Part No: 0018eSF4UP

    $273.05 each

    Upgrade to Grundfos Magna 1 32-60 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA60UP

    $677.83 each

    Upgrade to Grundfos Magna 1 32-100 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA100UP

    $677.83 each

    Upgrade to Taco 0018e Infinitely Variable Speed Proportional Pressure high efficiency ECM pump
    (upgrade charge per pump)

    Part No: 0018eUP

    $125.45 each

    Upgrade to Taco Viridian VT2218 high efficiency ECM Delta T pump
    (upgrade charge per pump)

    Part No: VT2218UP

    $243.23 each

    Upgrade to Taco 0026e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0026eUP

    $514.77 each

    Upgrade to Taco 0034e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0034eUP

    $689.87 each

    Upgrade to Taco VR3452 ECM High-Efficiency Circulator (only available for Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: VR3452UP

    $537.78 each

    Upgrade to Taco 2400-50-3P Cast Iron Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 2400-50-UP

    $706.04 each

    Upgrade to Taco VR15M-F ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: VR15M-UP

    $2603.61 each
    ↓   RHT Glycol Fill Unit   ↓

    RHT Hydronic Fill & Purge System / Glycol Fill Unit
    RHTHydronicFill_PurgeSystem.pdf

    Part No: RHT Glycol Pump

    $553.29 each
    $1991.85 (4 x $497.96)

    Easy Connection Kit for RHT Hydronic Fill & Purge System
    Includes:

    • ½" RHT Push-fit Ball Valve
    • ½" SharkBite elbow
    • ½" SharkBite x ¾" FNPT Reducing Connector

      Part No: FILL-CONNECT-KIT

    $49.10 each
    ↓   Stainless Steel Flex Connectors   ↓

    3/4″ I.D. SS Flex with 3/4″ FIP x 3/4″ FIP x 12″ (FF-12)

    Part No: SWC340-12

    $24.08 each

    3/4″ I.D. SS Flex with 3/4″ FIP x 3/4″ FIP x 18″ (FF-18)

    Part No: SWC340-18

    $29.25 each

    3/4″ I.D. SS Flex with 3/4″ FIP x 3/4″ FIP x 24″ (FF-24)

    Part No: SWC340-24

    $30.47 each

    1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 6" long

    Part No: SWC1-6

    $26.21 each

    1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 12" long

    Part No: SWC1-12

    $37.83 each

    1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 18" long

    Part No: SWC1-18

    $52.10 each

    1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 24" long

    Part No: SWC1-24

    $57.70 each

    1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 36" long

    Part No: SWC1-36

    $73.25 each

    1-1/4" I.D. Stainless Steel Flex Boiler Connector, 1-1/4" FIP x 1-1/4" FIP x 12" long

    Part No: SWC114-12

    $55.19 each

    1-1/4" I.D. Stainless Steel Flex Boiler Connector, 1-1/4" FIP x 1-1/4" FIP x 18" long

    Part No: SWC114-18

    $70.53 each

    1-1/4" I.D. Stainless Steel Flex Boiler Connector, 1-1/4" FIP x 1-1/4" FIP x 24" long

    Part No: SWC114-24

    $79.23 each

    Connection kit for HTP boiler with RHT Dominator prefab
    includes: 2x 24"x1-1/4" stainless steel flex lines, 1x 1-1/4" brass street 90 elbow

    Part No: DOM-FLEX-KIT

    $180.41 each

    1-1/2″ I.D. SS Flex with 1-1/2″ FIP x 1-1/2″ FIP x 18′

    Part No: SWC112-18

    $91.29 each

    1-1/2″ I.D. SS Flex with 1-1/2″ FIP x 1-1/2″ FIP x 24′

    Part No: SWC112-24

    $101.07 each

    1-1/2" I.D. Stainless Steel Flex Boiler Connector, 1-1/2" FIP x 1-1/2" FIP x 36" long

    Part No: SWC112-36

    $117.33 each

    2″ I.D. SS Flex with 2″ FIP x 2″ FIP x 18″

    Part No: SWC2-18

    $130.68 each

    2″ I.D. SS Flex with 2″ FIP x 2″ FIP x 24″

    Part No: SWC2-24

    $149.04 each

    3/4" x 18" Flexible stainless steel gas pipe Male & Female adapter CSA certified for indoor use rated 200,000 BTU.

    Part No: SGC10DC18A

    $43.89 each
