RHT Spartan Prefab 1-Zone Electric Boiler Panels

Fully Modulating Boiler with Outdoor Reset

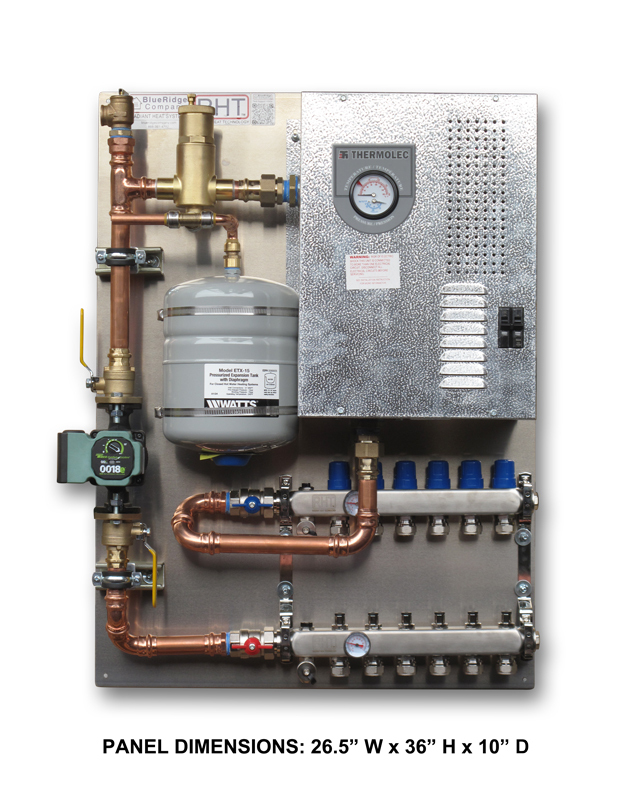

Radiant Heating Technology (RHT) Pre-Plumbed Panels are professionally engineered, manufactured and pressure-tested. Each panel comes complete with boiler, expansion tank and Taco 0018e ECM circulator pump. Panels are designed around the reliable Thermolec TMB Mini Boiler with H Stamp.

Choose from three boiler sizes and a variety of manifold options. All components are securely attached to an aluminum panel, ready to be mounted and connected to your hydronic heating system. Panel size varies depending upon number of pumps, but typically they measure 36" wide x 36" high x 12" deep. RHT Pre-Plumbed Panels are an excellent value and problem-solver. They will enhance the appearance of your installation while decreasing the labor and expense required to complete your radiant project.

Features:

  • Taco 0018e ECM pump
  • Compact and lightweight design
  • Full modulation for precise BTU demand output
  • Aquastat control -- adjustable supply water temperature range up to 190°F
  • Outdoor reset control
  • 30 psi pressure relief valve
  • No venting required


    FREE shipping to all US addresses in the Lower 48.
    Additional fees apply to shipments to AK, HI, and outside the US.

  • ↓   Panels w/ 10,236 BTU Boiler  ↓

    Pre-plumbed panel with 2 port manifold and 10,236 BTU Thermolec boiler

    Part No: 2/B-3TMB

    $3962.13 each

    Pre-plumbed panel with 3 port manifold and 10,236 BTU Thermolec boiler

    Part No: 3/B-3TMB

    $3976.74 each

    Pre-plumbed panel with 4 port manifold and 10,236 BTU Thermolec boiler

    Part No: 4/B-3TMB

    $3993.75 each

    Pre-plumbed panel with 5 port manifold and 10,236 BTU Thermolec boiler

    Part No: 5/B-3TMB

    $4055.78 each

    Pre-plumbed panel with 6 port manifold and 10,236 BTU Thermolec boiler

    Part No: 6/B-3TMB

    $4086.60 each

    Pre-plumbed panel with 10,236 BTU Thermolec boiler and no manifold

    Part No: WO-3TMB

    $3718.86 each
    ↓   Panels w/ 20,472 BTU Boiler  ↓

    Pre-plumbed panel with 2 port manifold and 20,472 BTU Thermolec boiler

    Part No: 2/B-6TMB

    $4012.28 each

    Pre-plumbed panel with 3 port manifold and 20,472 BTU Thermolec boiler

    Part No: 3/B-6TMB

    $4022.57 each

    Pre-plumbed panel with 4 port manifold and 20,472 BTU Thermolec boiler

    Part No: 4/B-6TMB

    $4056.45 each

    Pre-plumbed panel with 5 port manifold and 20,472 BTU Thermolec boiler

    Part No: 5/B-6TMB

    $4109.21 each

    Pre-plumbed panel with 6 port manifold and 20,472 BTU Thermolec boiler

    Part No: 6/B-6TMB

    $4147.73 each

    Pre-plumbed panel with 20,472 BTU Thermolec boiler and no manifold

    Part No: WO-6TMB

    $3742.74 each
    ↓   Panels w/ 30,708 BTU Boiler  ↓

    Pre-plumbed panel with 3 port manifold and 30,708 BTU Thermolec boiler

    Part No: 3/B-9TMB

    $4174.35 each

    Pre-plumbed panel with 4 port manifold and 30,708 BTU Thermolec boiler

    Part No: 4/B-9TMB

    $4208.23 each

    Pre-plumbed panel with 5 port manifold and 30,708 BTU Thermolec boiler

    Part No: 5/B-9TMB

    $4237.71 each

    Pre-plumbed panel with 6 port manifold and 30,708 BTU Thermolec boiler

    Part No: 6/B-9TMB

    $4478.54 each

    Pre-plumbed panel with 30,708 BTU Thermolec boiler and no manifold

    Part No: WO-9TMB

    $3820.97 each
    ↓   Panels w/ 37,532 BTU Boiler  ↓

    Pre-plumbed panel with 4 port manifold and 37,532 BTU Thermolec boiler

    Part No: 4/B-11TMB

    $4369.57 each

    Pre-plumbed panel with 5 port manifold and 37,532 BTU Thermolec boiler

    Part No: 5/B-11TMB

    $4422.37 each

    Pre-plumbed panel with 6 port manifold and 37,532 BTU Thermolec boiler

    Part No: 6/B-11TMB

    $4484.79 each

    Pre-plumbed panel with 7 port manifold and 37,532 BTU Thermolec boiler

    Part No: 7/B-11TMB

    $4547.10 each

    Pre-plumbed panel with 8 port manifold and 37,532 BTU Thermolec boiler

    Part No: 8/B-11TMB

    $4640.82 each

    Pre-plumbed panel with 37,532 BTU Thermolec boiler and no manifold

    Part No: WO-11TMB

    $4088.47 each
    ↓   Panel Pump Upgrades  ↓

    Install Watts B9-11T Backflow Preventer on Panel (includes backflow preventer and all parts)

    Part No: BFP-UP

    $280.23 each
    ↓   Circulator Pump Upgrade Options   ↓

    Upgrade from Grundfos UPSe Cast Iron Circulator to Taco 0018e SF4 Stainless Steel ECM Circulator
    (upgrade charge per pump)

    Part No: 0018eSF4UP

    $273.05 each

    Upgrade to Grundfos Magna 1 32-60 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA60UP

    $677.83 each

    Upgrade to Grundfos Magna 1 32-100 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA100UP

    $677.83 each

    Upgrade to Taco 0018e Infinitely Variable Speed Proportional Pressure high efficiency ECM pump
    (upgrade charge per pump)

    Part No: 0018eUP

    $125.45 each

    Upgrade to Taco Viridian VT2218 high efficiency ECM Delta T pump
    (upgrade charge per pump)

    Part No: VT2218UP

    $243.23 each

    Upgrade to Taco 0026e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0026eUP

    $514.77 each

    Upgrade to Taco 0034e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0034eUP

    $689.87 each

    Upgrade to Taco VR3452 ECM High-Efficiency Circulator (only available for Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: VR3452UP

    $537.78 each

    Upgrade to Taco 2400-50-3P Cast Iron Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 2400-50-UP

    $706.04 each

    Upgrade to Taco VR15M-F ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: VR15M-UP

    $2603.61 each
    ↓   RHT Glycol Fill Unit   ↓

    RHT Hydronic Fill & Purge System / Glycol Fill Unit
    RHTHydronicFill_PurgeSystem.pdf

    Part No: RHT Glycol Pump

    $553.29 each
    $1991.85 (4 x $497.96)

    Easy Connection Kit for RHT Hydronic Fill & Purge System
    Includes:

    • ½" RHT Push-fit Ball Valve
    • ½" SharkBite elbow
    • ½" SharkBite x ¾" FNPT Reducing Connector

      Part No: FILL-CONNECT-KIT

    $49.10 each
