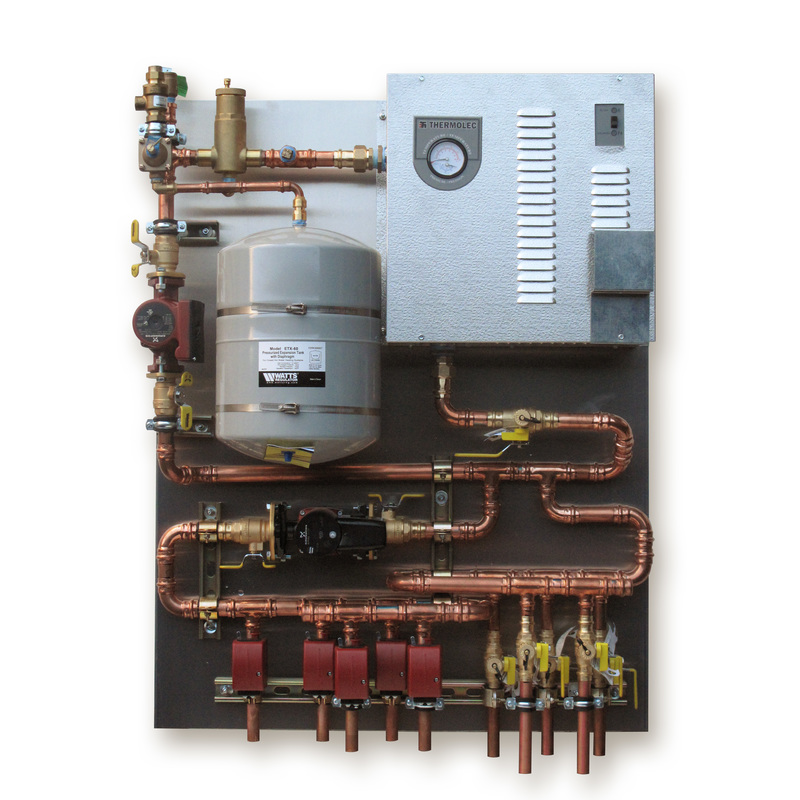

RHT Prefabricated Electric Boiler Panels with Zone Valves and Grundfos UPSe Pumps

Simplify Your Radiant Heating Project

RHT Boiler Panels are an excellent value & time-saver, simplifying your radiant heat installation. On-site work will consist of connecting your supply & return lines to the boiler, supply & return lines to manifolds, site wiring and providing make-up water supply. These units are designed around the reliable Thermolec electric boiler line.

Features:

  • Primary/secondary loop design with air separator
  • Grundfos UPSe multi speed ECM circulator pumps on the primary and secondary loops
  • Watts ETX-30 expansion tank
  • Grundfos Zone Valves
  • Tapping for optional low water cut off
  • Service valves and a zone valve controller combined with a boiler of your choice all mounted to an aluminum panel.
  • Panel size varies depending upon number of zones, but typically they measure 48" wide x 48" high x 12" deep.

    Panel and boiler priced separately, but only sold as a complete prefabricated unit. First select the panel containing the number of zones desired, then select the appropriate boiler to complete the panel. BlueRidge Company technicians would be pleased to assist you with the total system design. Call us at 866-361-4782 for a quote.

    Click here for step by step instructions on purging air from your prefab panel.


    FREE shipping to all US addresses in the Lower 48.
    Additional fees apply to shipments to AK, HI, and outside the US.

  • Documentation: RHTZLFPrefabPanel.pdf

    ↓   Select # of Zones from List Directly Following  ↓
    ↓   Then Select Thermolec Boiler from Choices Below   ↓

    2 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-2

    $3784.59 each

    3 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-3

    $4088.15 each

    4 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-4

    $4418.31 each

    5 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-5

    $4561.04 each

    6 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-6

    $5110.48 each

    7 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-7

    $5585.95 each

    8 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-8

    $5301.07 each

    9 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-9

    $5609.87 each

    10 Zone Electric Prefab Zone Valve Panel

    Part No: ZLF-10

    $5862.71 each
    ↓   Panel Upgrades   ↓

    Install Watts B9-11T Backflow Preventer on Panel (includes backflow preventer and all parts)

    Part No: BFP-UP

    $316.26 each
    ↓   Circulator Pump Upgrade Options   ↓

    Upgrade from Grundfos UPSe Cast Iron Circulator to Taco 0018e SF4 Stainless Steel ECM Circulator
    (upgrade charge per pump)

    Part No: 0018eSF4UP

    $273.05 each

    Upgrade to Grundfos Magna 1 32-60 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA60UP

    $677.83 each

    Upgrade to Grundfos Magna 1 32-100 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA100UP

    $677.83 each

    Upgrade to Taco 0018e Infinitely Variable Speed Proportional Pressure high efficiency ECM pump
    (upgrade charge per pump)

    Part No: 0018eUP

    $125.45 each

    Upgrade to Taco Viridian VT2218 high efficiency ECM Delta T pump
    (upgrade charge per pump)

    Part No: VT2218UP

    $243.23 each

    Upgrade to Taco 0026e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0026eUP

    $514.77 each

    Upgrade to Taco 0034e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0034eUP

    $689.87 each

    Upgrade to Taco VR3452 ECM High-Efficiency Circulator (only available for Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: VR3452UP

    $537.78 each

    Upgrade to Taco 2400-50-3P Cast Iron Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 2400-50-UP

    $706.04 each

    Upgrade to Taco VR15M-F ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: VR15M-UP

    $2603.61 each
    ↓  Thermolec TMB Series Mini Boilers ASME Listed With H Stamp  ↓

    Thermolec 10,236 BTU, 3KW@240V/1 Electric Boiler with H stamp

    Part No: B-3TMB

    $1431.45 each

    Thermolec 20,472 BTU, 6KW@240V/1 Electric Boiler with H stamp

    Part No: B-6TMB

    $1481.60 each

    Thermolec 30,708 BTU, 9KW@240V/1 Electric Boiler with H stamp

    Part No: B-9TMB

    $1613.38 each

    Thermolec 37,532 BTU, 11KW@240V/1 Electric Boiler with H stamp

    Part No: B-11TMB

    $1845.93 each
    ↓  Thermolec FFB Series ASME Listed With H Stamp   ↓

    Thermolec 19,619 BTU, 5.75KW@240V/1 Electric Boiler with H stamp

    Part No: B-6U FFB (H)

    $1694.83 each

    Thermolec 27,296 BTU, 8KW@240V/1 Electric Boiler with H stamp

    Part No: B-8U FFB (H)

    $1910.43 each

    Thermolec 34,120 BTU, 10KW@240V/1 Electric Boiler with H stamp

    Part No: B-10U FFB (H)

    $1985.87 each

    Thermolec 39,238 BTU, 11.5KW@240V/1 Electric Boiler with H stamp

    Part No: B-12U FFB (H)

    $2295.00 each

    Thermolec 51,180 BTU, 15KW@240V/1 Electric Boiler with H stamp

    Part No: B-15U FFB (H)

    $2705.91 each

    Thermolec 61,416 BTU, 18KW@240V/1 Electric Boiler with H stamp

    Part No: B-18U FFB (H)

    $2902.61 each

    Thermolec 68,240 BTU, 20KW@240V/1 Electric Boiler with H stamp

    Part No: B-20U FFB (H)

    $3150.79 each

    Thermolec 78,476 BTU, 23KW@240V/1 Electric Boiler with H stamp

    Part No: B-23U FFB (H)

    $3461.30 each

    Thermolec 92,124 BTU, 27KW@240V/1 Electric Boiler with H stamp

    Part No: B-27U FFB (H)

    $4375.02 each

    Thermolec 102,360 BTU, 30KW@240V/1 Electric Boiler with H stamp

    Part No: B-30U FFB (H)

    $4653.48 each

    Thermolec 119,420 BTU, 35KW@240V/1 Electric Boiler with H stamp

    Part No: B-35U FFB (H)

    $4812.39 each

    Thermolec 136,480 BTU, 40KW@240V/1 Electric Boiler with H stamp

    Part No: B-40U FFB (H)

    $4859.12 each
    ↓  Thermolec FFB 3 Phase Series   ↓

    Thermolec 51,180 BTU, 15KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-15U FFB-H 3 Phase

    $4809.63 each

    Thermolec 61,416 BTU, 18KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-18U FFB-H 3 Phase

    $5189.30 each

    Thermolec 81,888 BTU, 24KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-24U FFB-H 3 Phase

    $5287.43 each

    Thermolec 102,360 BTU, 30KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-30U FFB-H 3 Phase

    $5537.79 each

    Thermolec 119,420 BTU, 35KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-35U FFB-H 3 Phase

    $5979.41 each

    Thermolec 136,480 BTU, 40KW@480V/3PH Electric Boiler
    SPECIAL ORDER - 480V/3 phase only

    Part No: B-40U-FFB-480/3

    $6274.51 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 240V Single Phase  ↓

    Thermolec Tandem Boiler FFB-TB-42-240/1 143,300 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-42-240/1

    $5453.19 each

    Thermolec Tandem Boiler FFB-TB-45-240/1 153,500 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-45-240/1

    $5453.19 each

    FFB-TB-48-240/1 163,800 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-48-240/1

    $6134.72 each

    FFB-TB-50-240/1 170,600 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-50-240/1

    $6134.72 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 208V Three Phase  ↓

    FFB-TB-42-208/3 143,300 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-42-208/3

    $6397.22 each

    FFB-TB-45-208/3 153,500 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-45-208/3

    $6397.22 each

    FFB-TB-47-208/3 160,400 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-47-208/3

    $7123.47 each

    FFB-TB-50-208/3 170,600 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-50-208/3

    $7123.47 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 240V Three Phase  ↓

    FFB-TB-42-240/3 143,300 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-42-240/3

    $6397.22 each

    FFB-TB-44-240/3 150,100 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-44-240/3

    $6397.22 each

    FFB-TB-47-240/3 160,400 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-47-240/3

    $7123.47 each

    FFB-TB-50-240/3 170,600 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-50-240/3

    $7123.47 each

    FFB-TB-53-240/3 180,800 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-53-240/3

    $7123.47 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 480V Three Phase  ↓

    FFB-TB-42-480/3 143,300 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-42-480/3

    $6397.22 each

    FFB-TB-45-480/3 153,500 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-45-480/3

    $6397.22 each

    FFB-TB-50-480/3 170,600 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-50-480/3

    $6397.22 each

    FFB-TB-52-480/3 177,400 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-52-480/3

    $7197.36 each

    FFB-TB-55-480/3 187,700 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-55-480/3

    $7197.36 each

    FFB-TB-58-480/3 197,900 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-58-480/3

    $7197.36 each
    ↓   RHT Glycol Fill Unit   ↓

    RHT Hydronic Fill & Purge System / Glycol Fill Unit
    RHTHydronicFill_PurgeSystem.pdf

    Part No: RHT Glycol Pump

    $553.29 each
    $1991.85 (4 x $497.96)

    Easy Connection Kit for RHT Hydronic Fill & Purge System
    Includes:

    • ½" RHT Push-fit Ball Valve
    • ½" SharkBite elbow
    • ½" SharkBite x ¾" FNPT Reducing Connector

      Part No: FILL-CONNECT-KIT

    $49.10 each
